Name: T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T45 89mm
Price: 89 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα Rock Εργαλεία διάτρησης

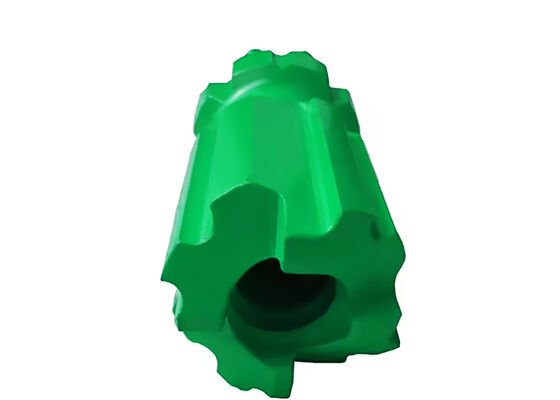

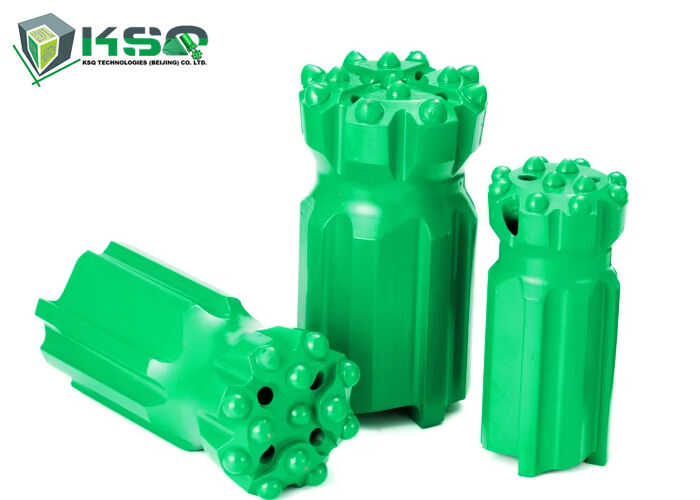

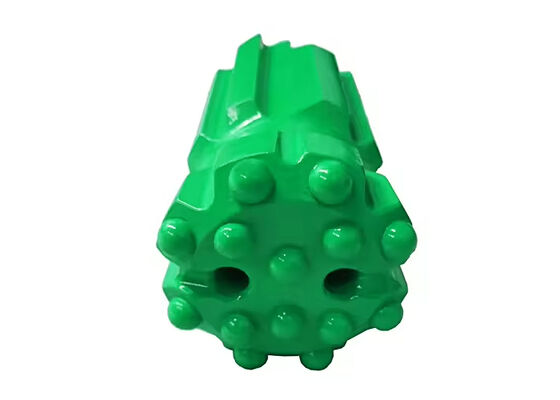

T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	MIROC
Πιστοποίηση:	ISO
Αριθμό μοντέλου:	T45 89mm

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Τιμή:	89
Συσκευασία λεπτομέρειες:	ξύλινες θήκες
Χρόνος παράδοσης:	20-30
Δυνατότητα προσφοράς:	3000

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Τύπος:	τρυπάνι	Υλικό:	Καρβίδιο και κράμα βολφραμίου
βάρος (kg):	5.5	Όνομα προϊόντος:	T45 89mm ρετρακ μύτη κουμπιού Χρώμα
Χρώμα:	Πράσινο, κόκκινο ή σύμφωνα με τις απαιτήσεις σας	Παραγωγική διαδικασία:	Σφυρηλάτηση και θερμική επεξεργασία
Τύπος σύνδεσης:	Νήμα	Τύπος κράματος:	Σφαιρικό/Ημισφαιρικό/Παραβολικό/Κωνικό/Βαλλιστικό
Τύπος φουστών:	Retrac φούστα	Κατάσταση:	Νέος
Επισημαίνω:	89mm carbide rock drill bit , retrac thread drill button bit , forged T45 rock drill bit

T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit

Company Introduction

KSQ Technology (Beijing) Co., Ltd. specializes in the supply of high-quality rock drilling tools for mining, construction, tunneling, and quarrying projects worldwide. Our product range includes DTH hammers and bits, drill pipes, threaded drilling tools, reverse circulation hammers and bits, shank adapters, and coupling sleeves. We are committed to offering competitive advantages through reliable performance and engineering excellence.

Product Overview

This button bit is designed for high-efficiency drilling in demanding rock conditions. Featuring a T45 thread, 89mm diameter, carbide forged construction, and retrac design, it ensures superior wear resistance, easy retraction, and consistent performance in both surface and underground drilling applications.

Key Features & Benefits

T45 Thread - Standardized connection for wide compatibility with drilling equipment
89mm Diameter - Optimized for medium to large hole drilling applications
Carbide Forged Construction - High-grade tungsten carbide inserts for extended service life
Retrac Design - Facilitates easy bit retraction in broken or fractured ground conditions
Versatile Application - Suitable for mining, tunneling, quarrying, and construction drilling

Product Specifications

Product Name	Different rock hardness drilling button bit
Description	For different rock hardness mining, tunneling, quarrying button bit
Material	Alloy steel bar and tungsten carbide bit
MOQ	Trial order 1-5pcs
Body Type	Normal type and retract type
Thread Type	R25, R28, R32, R38, T38, T45, T51, ST58, ST68
Diameter	32mm-152mm
Button Bit Shape	Spherical and Ballistic
Face Shape	Flat shape and Drop-center shape

Technical Specifications Table

Product Name	Bit Diameter (mm)	Bit Diameter (inch)	Carbide Button Front (No. x mm)	Carbide Button Gauge (No. x mm)	Angle	Flushing Hole	Weight (kg)
T45 Retrac Bit	70	2 3/4	3x11, 1x9	6x11	35°	3	2.5
T45 Retrac Bit	70	2 3/4	4x10, 1x10	8x11	35°	4	2.5
T45 Retrac Bit	76	3	4x11	8x11	40°	2	3.2
T45 Retrac Bit	76	3	4x11	8x12	35°	2	3.2
T45 Retrac Bit	76	3	3x11, 1x11	6x13	35°	3	3.2
T45 Retrac Bit	76	3	4x11, 1x11	8x11	35°	4	3.2
T45 Retrac Bit	76	3	4x11, 1x11	8x12	35°	4	3.2
T45 Retrac Bit	89	3 1/2	4x13	8x13	40°	2	5.4
T45 Retrac Bit	89	3 1/2	6x11	8x12	35°	2	5.4
T45 Retrac Bit	89	3 1/2	3x11, 2x11	8x13	35°	3	5.4
T45 Retrac Bit	89	3 1/2	4x11, 1x11	8x12	35°	4	5.4
T45 Retrac Bit	89	3 1/2	4x13, 1x13	8x13	35°	4	5.4
